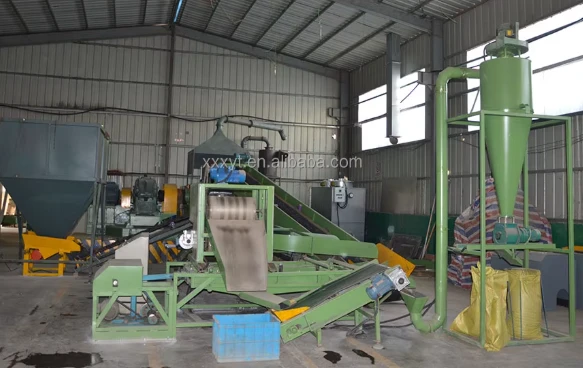

Products Description Of The Used Tire Machine for Making Rubber Powder
This fully automated rubber powder recycling line is an integrated system designed for the recycling and resource recovery of waste rubber. Utilizing an ambient-temperature physical processing method that requires no chemical additives, it operates as a continuous, automated assembly line. The system comprises a primary rubber shredder, conveying equipment and screening system, a multi-stage magnetic separation unit, and a centralized electrical control system. It performs multi-stage shredding and fine grinding on pre-processed rubber blocks to produce rubber granules and powders in various specifications. Throughout the process, multiple metal separation stages effectively remove liberated fine steel wires, ensuring high product purity; this system serves as a core solution for waste tire and industrial rubber recycling projects.
Product Video The Used Tire Machine for Making Rubber Powder
Core Components Of The Used Tire Machine for Making Rubber Powder

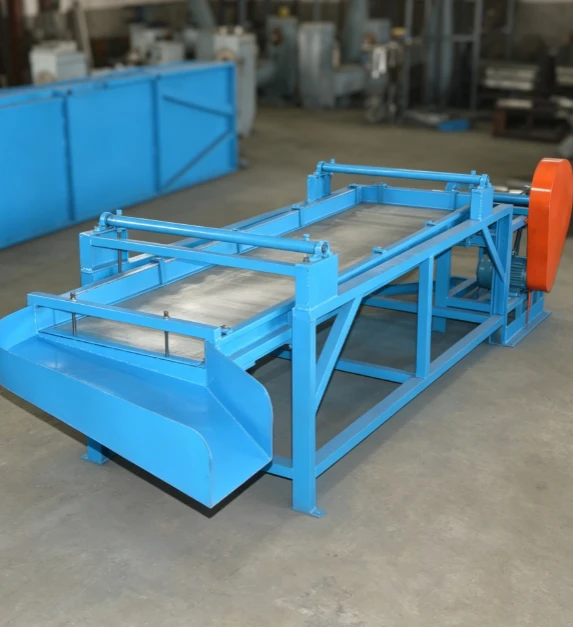

The system features a compact design; the standard configuration includes a primary rubber shredder, belt conveyors, a multi-deck vibrating screen, several magnetic separator, and an integrated electrical control cabinet. The system offers flexible change based on customer capacity requirements and site conditions such as fiber separation equipment, dust removal systems, and automatic finished-product baling units, making it suitable for the construction of small, medium, and large-scale reclaimed rubber processing plants. Automated material transfer via conveyors significantly reduces manual handling, thereby minimizing material loss and mitigating on-site safety risks.
Processing Workflow

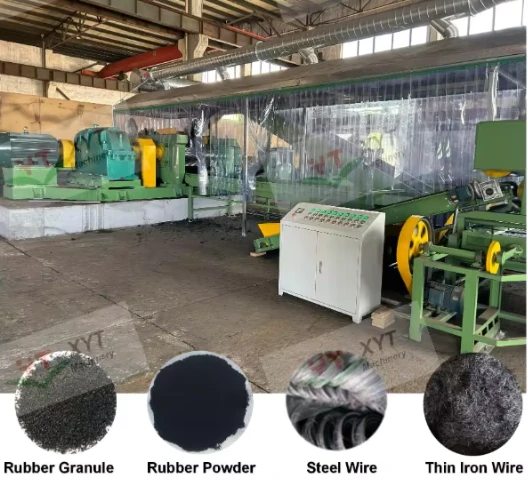

Rubber raw materials that have undergone preliminary treatment are fed into the primary crushing unit via a conveyor system, where initial size reduction is achieved through roller shearing and compression. The crushed mixture is transported to the first magnetic separation unit to remove large steel wire. The material then proceeds to the next stage-a grinding process-to be refined to the target particle size, followed by classification in a vibrating screen; material meeting specifications is sent to the finished product area, while oversized material is automatically recirculated for further grinding. The production line incorporates multi-stage magnetic separation equipment to continuously remove fine steel wires released during processing, ensuring high product quality through comprehensive impurity removal. Optional dust control systems are available to suppress airborne dust and maintain a clean production environment.
The Core equipment--Crusher Of The Used Tire Machine for Making Rubber Powder
Two material options are available for the crushing rolls to suit specific needs: chilled cast iron rolls alloyed with vanadium and titanium offer high hardness and excellent wear resistance, while cast steel rolls feature a hard-alloy hardfacing treatment for superior impact resistance. The rear roll utilizes a specially engineered grooved profile to optimize material nip and shearing performance. The drive system incorporates a hardened-gear reducer, ensuring stable and reliable power output while maintaining high production efficiency and minimizing operating noise.
The equipment features multiple practical protective designs: a built-in overload protection mechanism instantly engages if the load exceeds limits, preventing damage to core components; additionally, an automatic bearing lubrication system eliminates the need for frequent manual lubrication, simplifying daily operations and reducing maintenance requirements.
Product Parameters Of The Crusher
| model | XKP400 | XKP450 | XKP560 | XKP610/800 | XKP610/1000 | XKP710 |
| front roller(mm) | 400 | 450 | 560 | 510 | 560 | 660 |
| rear roller(mm) | 400 | 450 | 510 | 610 | 610 | 710 |
| roll length((mm) | 600 | 800 | 800 | 800 | 1000 | 1000 |
| rollers speed ratio | 1:1.38 | 1:1.43 | 1:1.38 | 1:2 | 1:1.9 | 1:1.85 |
| front roll linear speed(m/min) | 22.29 | 24.38 | 22.68 | 23.79 | 24.72 | 29.99 |
| max gap(mm) | 10 | 10 | 16 | 16 | 16 | 12 |
| sliding/rolling bearing | sliding bearing | optional | optional | optional | rolling beraing | rolling bearing |
| capacity(kg/h)/0.5-5mm | 200-500 | 300-700 | 500-800 | 600-1200 | 1000-2000 | 1500-2500 |
| motor power(kw) | 45 | 75 | 90 | 132 | 185 | 250 |
| weight(kg) | 7500 | 11500 | 17000 | 17500 | 19500 | 27500 |
| size(mm) | 3920*1850*1720 | 5060*1930*1550 | 5620*2260*1900 | 5739*2270*1560 | 5899*2270*1560 | 6230*2438*1840 |
