Product features

1. The particle fineness can be adjusted at will.

2. Micro dust removal device, independent dust removal and fiber removal device and atomization spray system solve the pollution problem of recycled waste.

3. The overall design has beautiful appearance, compact structure, few vulnerable parts and convenient maintenance. It is an upgraded product.

4. With many models, affordable price, high output and low power consumption, it is the object of choice for personal investment and entrepreneurship.

Technical Data

Model	PS4060	PS4080
Motor (kw)	30	45
Input size (mm)	<50	<50
Output size(mm)	1-5	1-5
QTY of blades (pcs)	18	24
Weight (kg)	1050	1450
Dimension (mm)	132014501730	152014501730
Production	400-500kg/h	500-700kg/h

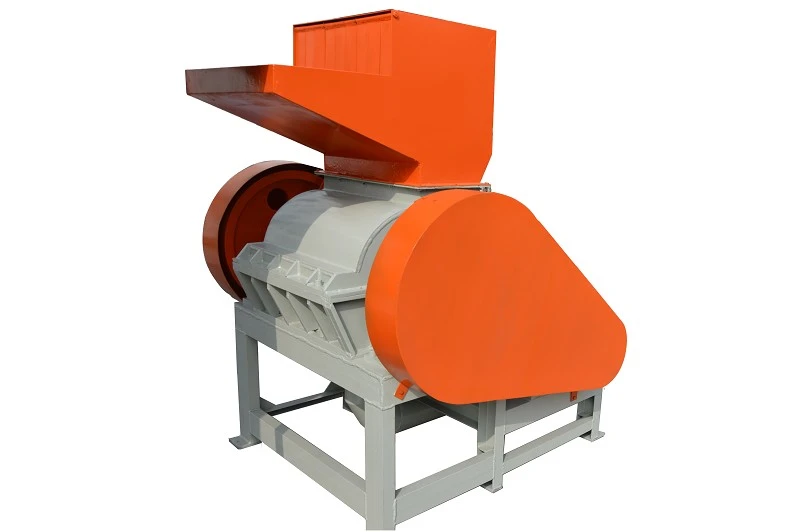

Tire Granulator is a product that processes waste rubber products, leftover materials and waste tires into rubber particles.

Tire Granulator is a newly developed multifunctional granulator, which can produce three different specifications of rubber particles at the same time, with more uniform discharge and finer material distribution. The unique internal structure design enables the rubber granulator to fully and effectively crush the materials in the crushing chamber during operation. This new type of waste rubber particle equipment has the advantages of low energy consumption, high efficiency and uniform fine crushing.

The purpose of rubber particles is comprehensive: it is mainly used in sports track, football field, tennis court, basketball court and other sports venues, expressway and high-speed railway, and is widely used in hospitals, hotels, restaurants, families, kindergartens, nursing homes, roads and factories, which need shock absorption, noise reduction and anti-skid, and can be used flexibly, It can be used in combination with various types of surface materials. Its outstanding characteristics are anti-skid, sun protection, wear resistance and flame retardant.

The combined rubber granulator is aimed at more complex raw materials, such as waste tires. Because of its external and internal structural characteristics, waste tires cannot be crushed into uniform 1-4mm rubber runway special particles by a single rubber granulator, It needs combined rubber particle equipment to divide work and cooperate: waste tire → ring cutter → strip cutter → block cutter → crusher → fiber separator (magnetic separator) → inspection → warehousing, so this equipment is also called tire particle machine.

Rubber granule production line
