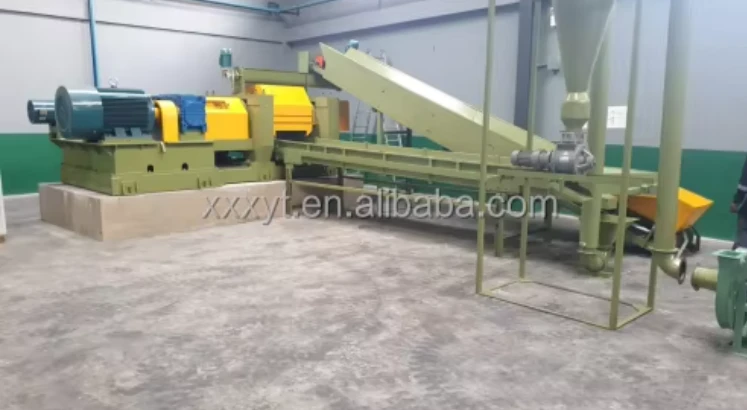

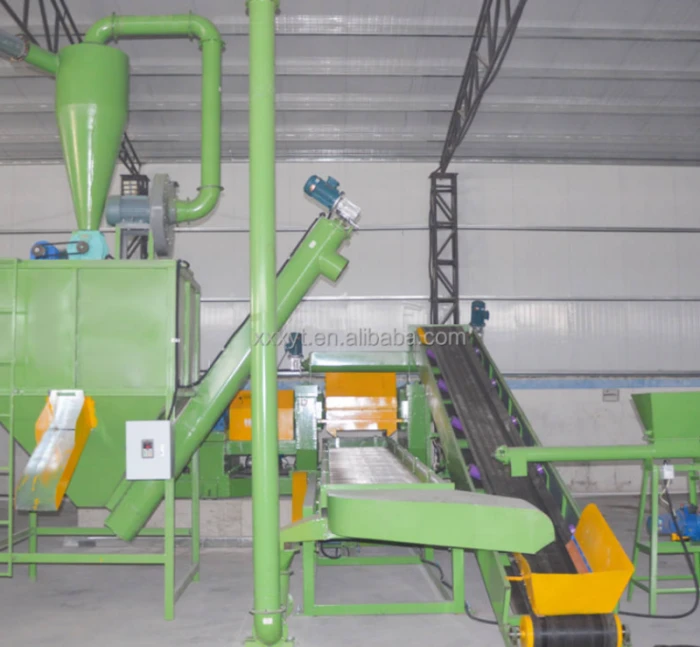

1.Fine Rubber Powder Crusher / Tire Recycling Machine
This Fine Rubber Powder Crusher / Tire Recycling Machine is designed for further processing of 10–20 mesh rubber powder. It produces 30–80 mesh fine rubber powder through ambient-temperature grinding.
2.Features:
*Eco-friendly normal-temperature grinding technology
Materials are processed into standard 40–80 mesh fine rubber powder under ambient temperature. No open flame is generated during operation, and the integrated dust control design effectively suppresses flying dust to satisfy global environmental standards.
*Intelligent automatic control system for the whole line
The complete production line is equipped with an integrated automatic control system. Only 1–2 operators are required to run the whole workflow. Stable running parameters and safety interlock design guarantee secure, consistent long-term production.
*Compact layout with easy maintenance
Optimized structural design saves installation space and occupies a smaller workshop area. Each functional module is reasonably arranged, which facilitates daily inspection, component replacement and routine maintenance.
*Excellent overall economic benefits
It features low power consumption and high unit-area productivity. Compared with similar equipment, it delivers outstanding cost-performance and helps customers cut long-term operational expenses.
*Break through limitations of traditional grinding equipment
This set of equipment overcomes common drawbacks of conventional grinders, such as limited hourly throughput, heavy manual workload, and incapability of non-stop continuous production, greatly boosting overall production efficiency.
3.Technical Parameters
| Model | XKM450 | XKM550 |
| Roller diameter | Φ450 mm | Φ550 mm |
| Roller working length | 800 mm | 1000 mm |
| Bearing type | Rolling bearing | Rolling bearing |
| Motor power | 90 kW | 105 kW |
| Capacity | 200–800 kg/h | 260–1100 kg/h |
| Weight | 11,000 kg | 17,500 kg |
| Machine size | 4520 × 2110 × 1450 mm | 5010 × 2430 × 1540 mm |
4.Xinyutian Factory and Support
Xinxiang Xinyutian Rubber and Plastic Machinery Co., Ltd. supplies equipment for waste tire recycling and rubber powder processing. Its product range covers tire pre-treatment machines, shredders, milling equipment, rubber granule lines, fine rubber powder lines, and related auxiliary units.
The factory provides:
*Equipment development and production;
*Machine assembly and factory testing;
*Inspection before shipment;
*Test-run videos for order review;
*Installation guidance;
*Operation and training videos;
*Remote technical assistance;
*Workshop layout and line expansion advice.
Before making a plan, customers can share the raw material mesh size, required powder size, expected capacity, workshop conditions, and other line equipment. Based on these details, Xinyutian can discuss a suitable **Fine Rubber Powder Crusher / Tire Recycling Machine** solution.
5.CERTIFICATES

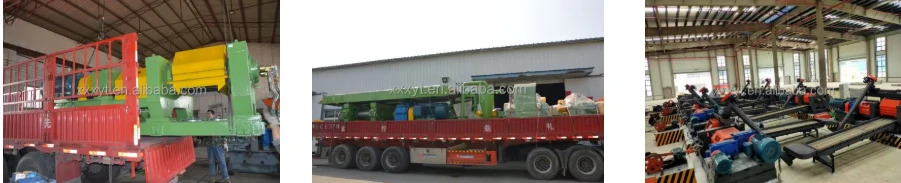

6.Packing and Shipping
We use suitable packing methods for the Fine Rubber Powder Crusher / Tire Recycling Machine and its auxiliary equipment.
*Main equipment: The roller fine pulverizer and large components are fixed securely before loading.
*Small parts: Screws, electrical parts, tools, and other accessories are packed separately to prevent loss or impact damage.
*Moisture protection: Important machine surfaces are covered with protective plastic film to reduce dust and moisture during transport.
*Wooden cases: Fragile parts and selected accessories are placed in strong export wooden cases.
*Container loading:The equipment is arranged carefully to make reasonable use of container space.
*Shipping documents: Required export and customs documents are prepared according to the shipment plan.
*Delivery plan:Packing and delivery arrangements are discussed according to the machine model, auxiliary equipment, destination, and order requirements.
This packing method helps protect the equipment during long-distance transportation and supports smooth installation after arrival.
7.WORKSHOP
8.CUSTOMER PHOTOS
