Super fine rubber powder grinder
Automatic Scrap Tire Recycling Plant | Ambient Temperature Rubber Crumb & Fine Powder Production Line
Product Brief
This complete waste tyre recycling system is engineered to process spent passenger and truck radial tires, achieving separation of rubber, embedded steel wire and textile fiber under normal temperature without chemical additives. After systematic crushing, grinding and multi-stage sorting, the plant produces clean rubber granules and fine crumb rubber, widely adopted for athletic tracks, waterproof membranes, rubber tiles, asphalt modification and recycled rubber manufacturing.

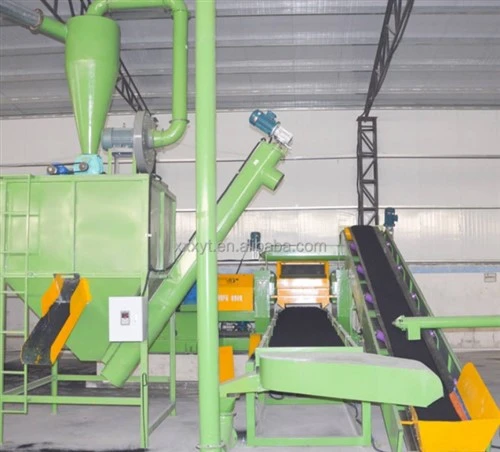

This ambient-temperature scrap tire recycling plant converts waste tires into fine rubber powder. The core rubber pulverizer unit is structured with base support, main frame, front and rear grinding rollers, universal couplings, TMC reducers, roller gap adjustment assembly, cooling device and electrical control system. Two independent motors and reducers drive the double rollers to operate at differential rotation speeds. The rollers are cast from alloy chilled cast iron with wear-resistant hardened surfaces. Customers can select either PLC frequency conversion control or standard electric cabinet control mode.
Working Flow
Whole Tire Cutting → Bead Wire Extraction → Primary Shredding → Coarse Crushing → Magnetic Metal Separation → Vibration Screening → Fine Milling → Air Classification for Fiber Removal → Finished Material Storage & Packing
Main Advantages
Ambient-temperature processing technology is adopted. Raw materials are processed into 40–80 mesh fine rubber powder at normal temperature, and no smoke is generated during operation.
Equipped with integrated automatic control system. The whole production line only requires 1–2 operators, realizing stable and secure continuous operation.
Modular and compact overall layout, which saves workshop floor space and facilitates routine inspection and maintenance.
Optimized energy consumption design. The equipment delivers high output per unit area, bringing outstanding cost performance and better investment returns.
It remedies the typical shortcomings of old-fashioned equipment, including low yield, intensive labor and inability to run continuously.
The grinding rollers are easy to repair. Our factory is equipped with special roller restoration equipment to carry out maintenance without roller disassembly.
Flexible customization is available. We provide multiple optional production capacities, and the fineness of finished rubber powder can be adjusted within the target range to satisfy various market applications.
Applications of Fine Rubber Powder
Product Parameters
|
model |
XKM450 |
XKM550 |
|
roller diameter(mm) |
φ450 |
φ550 |
|
roller working length(mm) |
800 |
1000 |
|
bearing type |
rolling bearing |
rolling bearing |
|
motor power(kw) |
90 |
105 |
|
capacity(kg/h) |
200-800 |
260-1100 |
|
weight(kg) |
11000 |
17500 |
|
size(mm) |
4520×2110×1450 |
5010×2430×1540 |
fAQ
Q:1.Are you manufacturer?
A:Yes,we are a professional manufacturer of tire recycling machine in China.
Q:2.Can you design new product for us?
A:Absolutely!We have a professional development team that make new products according to your requirements.
Q:3.Do you have any certificate of your products?
A:Yes, CE, ISO and so on.
Q:4.How long is the warranty?
A:One year.A nd our engineer are available to help our customers with the installation and training with the machines overseas.
Q:5.What are available shipment Port?
A:FOB all ports in China or other payment term based on the requirement of the customers.
Q:6.Do you conduct quality inspections?
A:Third party inspection: acceptable
On-site shipment picture
One-stop Project Service
• Free factory layout design • Equipment drawings & operation manuals (multilingual version available) • Remote installation guidance & operator training • Overseas engineer commissioning upon request • Fast supply of spare parts • Reference for production income calculation Disclaimer: Profit is affected by local raw material price, electricity cost and finished product price. The data is for reference only.
Global After-sales Support
We have multilingual sales & technical staff for different regions. Familiar with import customs documents and regional environmental policies to provide comprehensive support for overseas clients.
