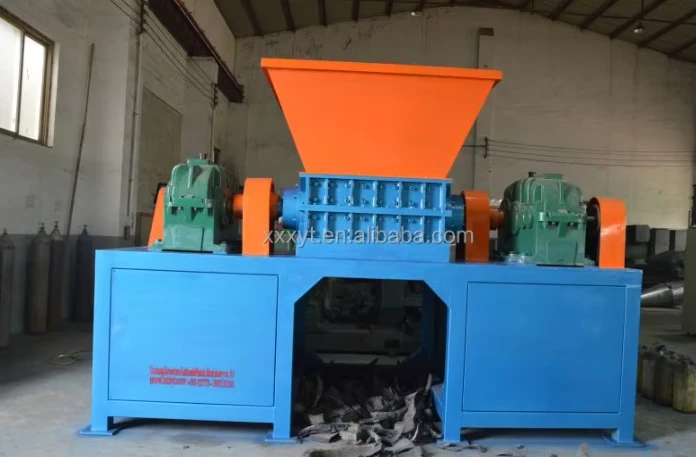

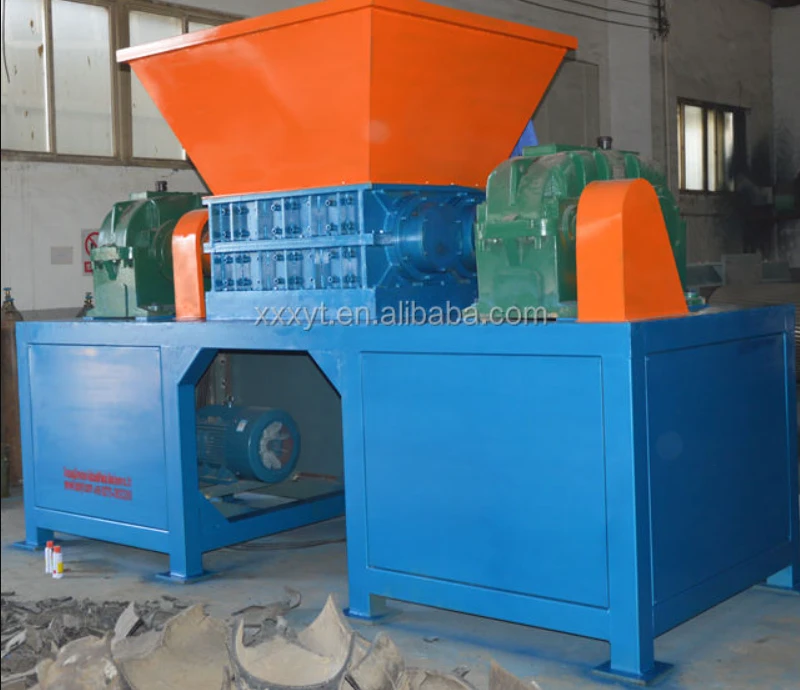

Double Roll Type Tyre Crusher Machine / Old Tyre Recycling Machine

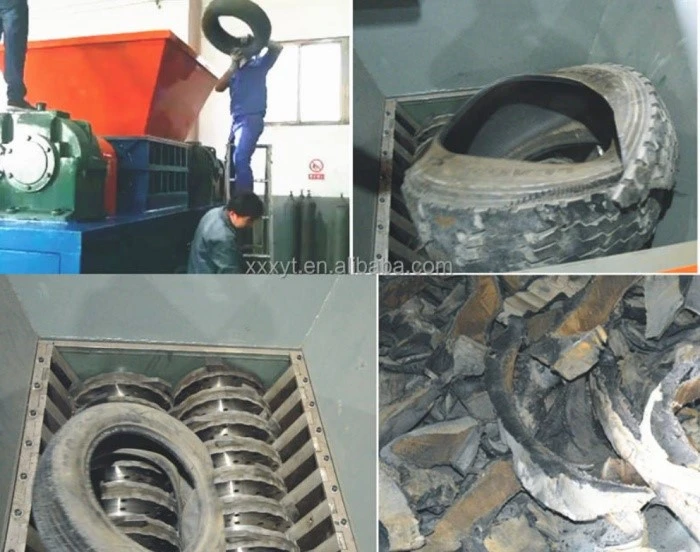

EPJ Tire Shredder is used to shred to shred radial tire and fiber tire into tire chips of 60*80mm size in ambient process,the tire needs to be debeaded before shredding.
Double Roll Type Tyre Crusher Machine / Old Tyre Recycling Machine ---Tire shredder
EPJ Tire Shredder is used to shred to shred radial tire and fiber tire into tire chips of 60*80mm size in ambient process,the tire needs to be debeaded before shredding.
It mainly consists of motor; speed reducer,machine frame, shredding blades , rotary screener ,transmission system,etc.
Product Advantage
1. High degree of automation, high production efficiency and low energy consumption;

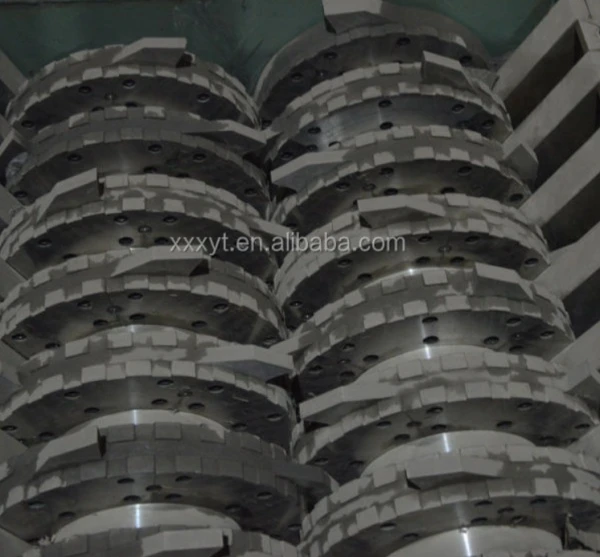

2. The blade is made of special materials, with high wear resistance, and can be used for multiple grinding;
3. The combined blade design is adopted to eliminate the cumbersome work of overall disassembly when replacement;
4. The crushing chamber adopts an open structure, which is convenient for maintenance and maintenance;
5. It has a wide range of applications, and can also be used as a crushing equipment for other waste materials.
6. The company produces a variety of types of rubber crushers for customers to choose, and can also be customized for customers.
Product Specifications
model
EPJ1000
EPJ1300
capacity(t/h)
0.8-3
2-5
input size(mm)
≤1200
≤1200
output size(MM)
60*80
60*80
shaft speed (RPM)
10
10
motor power(kw)
30*2
45*2
weight(kg)
6500
9000
size(mm)
4040*1660*2720
4340*1660*2720
Product video
Simple Products

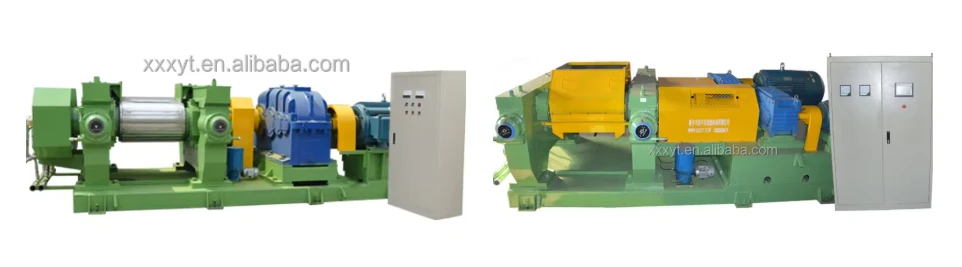

Crusher
Crusher is the main equipment for scrap tyres recycling rubber powder production line, it is applicable for break scrap tyres and reclaimed rubber.
Super fine rubber powder grinder
The machine is used to grind 18-24 mesh powder to 40-80 mesh fine powder, less powder is carbonized. Fine powder is applied to make waterproof membrane, reclaimed rubber and other rubber products.
Service
Pre sales
1.customizes to suit customers'exact needs
2.recommend suitable machines configuration accordance to actual situation from customers.
After deal
1.provide details building factory plan
2.provide technical service like foundation making drawing,layout drawing(CAD drawing)
After sale
1.warranty for one year
2. provide technical tracking and service
3.come up with best solution within 24hours whenever customers have any questions.(specifi video,photos will be provided for explain)
