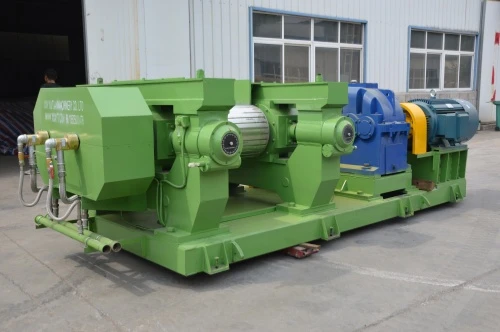

The automatic tire shredders recycling machinel is a core piece of equipment for the resource recycling of waste rubber. It is mainly used to crush waste tires, rubber products, reclaimed rubber blocks, and other raw materials into uniform rubber granules or powder through the extrusion and shearing action of rollers. It provides qualified semi-finished products for subsequent processes such as rubber modification, reclaimed rubber production, and rubber product reproduction. Widely applied in waste tire recycling plants, reclaimed rubber processing factories, and rubber product manufacturing enterprises, it serves as a key device in the rubber recycling industry chain.
The rollers are made of alloy chilled cast iron; the working surfaces and journals are hard-faced with hard alloy material and precision-ground, ensuring high hardness and wear resistance.

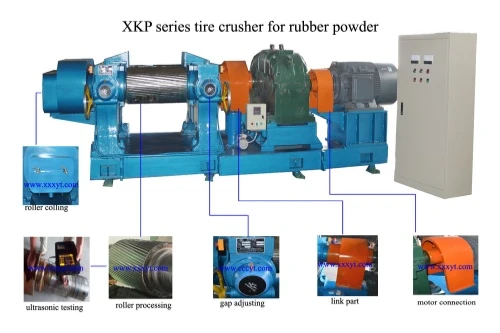

1.Components: Base, frame, front and rear rollers, drive gears, speed reducer, gap adjustment mechanism, roller temperature control system, safety switches, and electrical control system.
2.Gap adjustment mechanism: Features a side-mounted worm gear and worm screw design, offering effortless operation and an aesthetically pleasing appearance.
3.Roller temperature control system: Allows cooling water to circulate inside the rollers to regulate surface temperature and meet processing requirements.
4.Safety protection devices:
a. Motor overload protection.
b. Roller safety device: Activates when the operating pressure momentarily exceeds the load limit, thereby protecting the rollers and other key components, enhancing operational reliability, and reducing maintenance costs.
| model | XKP610 |
| front roller(mm) | 510 |
| rear roller(mm) | 610 |
| roll length(mm) | 800 |
| rollers speed ratio | 1:2 |
| front roll linear speed(m/min) | 23.79 |
| max gap(mm) | 16 |
| sliding/rolling bearing | optional |
| capacity(kg/h)/0.5-5mm | 600-1200 |
| motor power(kw) | 132 |
| weight(kg) | 17500 |
| size(mm) | 5379*2270*1560 |
Reasons to Partner with Xinyutian
Our Business Philosophy
Our factory always sticks to manufacturing premium-grade machinery. We never cut corners to churn out low-standard units for quick, temporary profits.
Intelligent Customized Control System
Every set of our machines is built with tailor-made, systematic smart control solutions. This design effectively slashes labor input and daily maintenance spending, as well as prolongs the overall service lifespan of the whole equipment.
Sturdy & Reliable Mechanical Build
When developing machinery, Xinyutian places structural sturdiness as a top priority. We firmly believe industrial processing equipment ought to feature a heavy-duty frame for long-term durable use.
Complete Safety Safeguards
Multiple layers of built-in safety mechanisms come standard on all our machines, delivering a much safer and simpler operating experience for operators.
Full-Spectrum Turnkey Solutions
We deliver all-inclusive end-to-end support covering machinery delivery, on-site installation, equipment debugging and consistent post-sale assistance, aiming to maximize economic benefits for every client.
